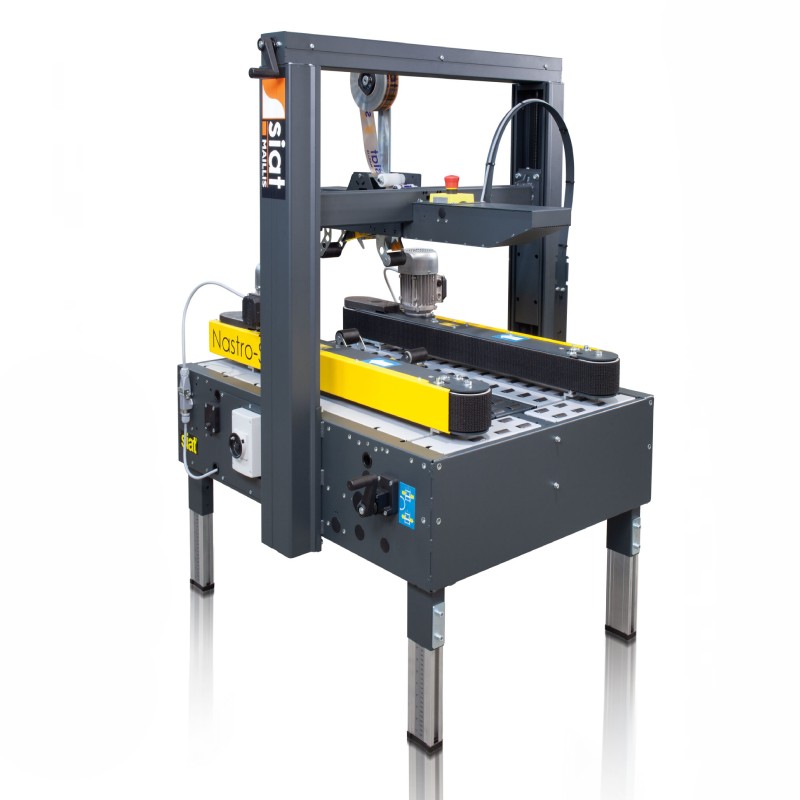

SIAT Nastro-SB M Case sealer
Nastro-SB M is a semi-automatic “Fixed Format” case sealer: it means that all the adjustments needed to use the machine in a correct way are done manually.
Evolved version of the XL35 model
It is used for long production runs with same boxes dimension. The machine applies automatically two self-adhesive tape stripes on the upper and lower boxes middle line.
Adjustment and use are intuitive, simple and fast.
Key features
- Side drive belts with self-centering screw adjustment device
- Manual adjustment on various box sizes
- 2 x K11R taping unit - 50 mm width
- 2 motors kW 0,13 each
- Extruded aluminium telescopic legs with millimetric guide
- Locked stop emergency button
| Box dimensions |
L |
W | H |
| M5-S |
150 mm- ∞ | 150 - 500 mm | 120 - 500 mm |
| M5-L | 150 mm - ∞ | 105 - 500 mm | 50 - 500 mm |
| M6-S | 150 mm - ∞ | 150 - 650 mm | 120 - 650 mm |
| M6-L | 150 mm - ∞ | 105 - 650 mm | 50 - 650 mm |
| M8 | 150 mm - ∞ | 150 - 800 mm | 120 - 800 mm |
Options
- 2 x K12R taping unit - 75 mm width
- Higher legs (AS80)
- Casters (AS77)
- Roller conveyor (RG)
- Extendable conveyor (GTL-GTR)
- Inkjet printer (K-125 / K-250)
SMPANSBM
Nastro-SB M is a semi-automatic “Fixed Format” case sealer: it means that all the adjustments needed to use the machine in a correct way are done manually.
Evolved version of the XL35 model
It is used for long production runs with same boxes dimension. The machine applies automatically two self-adhesive tape stripes on the upper and lower boxes middle line.
Adjustment and use are intuitive, simple and fast.
