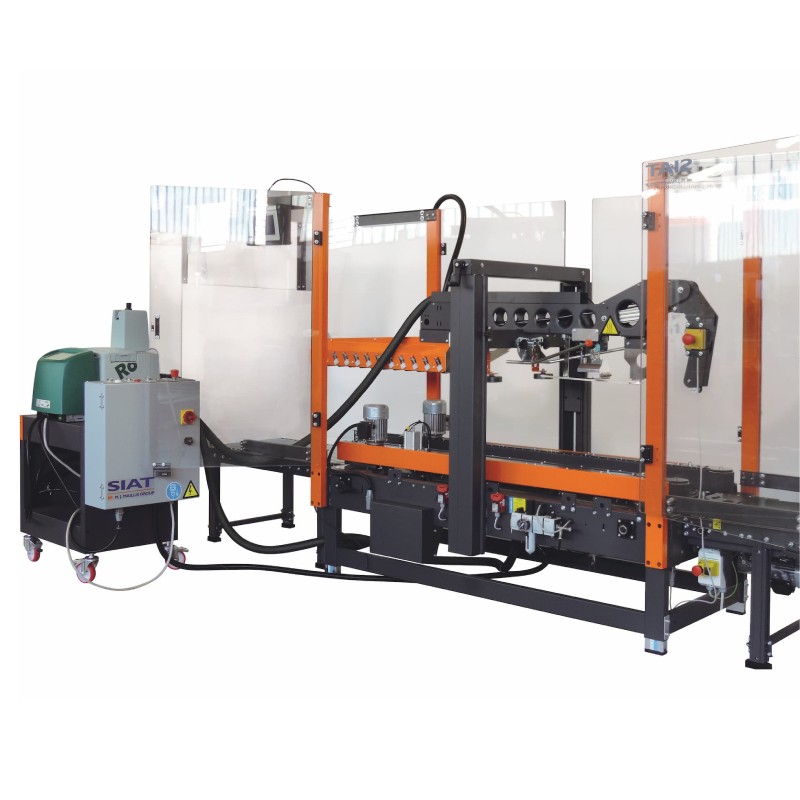

HM11-T/TB SIAT Case sealer Hot Melt

HM11-T and HM11-TB are automatic case sealers with side drive belts and manual adjustment.

Quantity

They are designed to seal with Hot Melt glue the top and bottom of boxes of the same size. The box, coming from a filling station with the bottom flaps sealed, is taken away by drive belts toward the machine where injectors dispense 4 strips of Hot Melt glue. A system of flap compression rollers provides the proper pressure on top and bottom flaps of boxes.

The Hot Melt case sealers don’t require the presence of an operator except for the glue adjustments and feeding. They are equipped with safety panels to prevent an operator from coming in contact with moving or hot parts.

Key Features

  • Manual adjustment on the different box sizes (width,height,length) by handles
  • Side drive belts (2 x 75 mm width each)
  • 2 x Motors kW 0,18 each

HM11-T

  • The top glue dispensing applicator dispenses the glue on the top flaps while boxes pass through the machine before the top flps folding

HM11-TB

  • The top & bottom glue dispensing applicator dispenses the glue on the top and bottom flaps while boxes pass through the machine before the top flaps
  • folding
  • ROBATECH® Hot Melt glue dispenser on an external carriage with casters equipped with 5 Kg tank, tube and glue applicator included
  • (other brands on request))
  • The glue dispenser adjusts glue temperature & volume
  • Storing of sealing programs
  • Timer setting to allow pre-heating adjustment
  • Box dimensions adjustment
  • Side safety protections with stop emergency button and switches to disconnect electric & pneumatic circuits
  • Control panel equipped with: main switch start, stop button, stop emergency button and photocells to control glued boxes passing
  • Machine controlled by PLC

Box dimensions

  • Min. L 200 mm W 150 mm H 150 mm
  • Max. L 600 mm W 500 mm H 500 mm

Options

  • Other PLC brands on request
  • Other hot melt dispenser on request (PREO, NORDSON and other brand)
  • Higher legs (AS80)
  • Casters (AS77)
  • Roller conveyor (RG)
  • Extendable conveyor (GTL-GTR)
