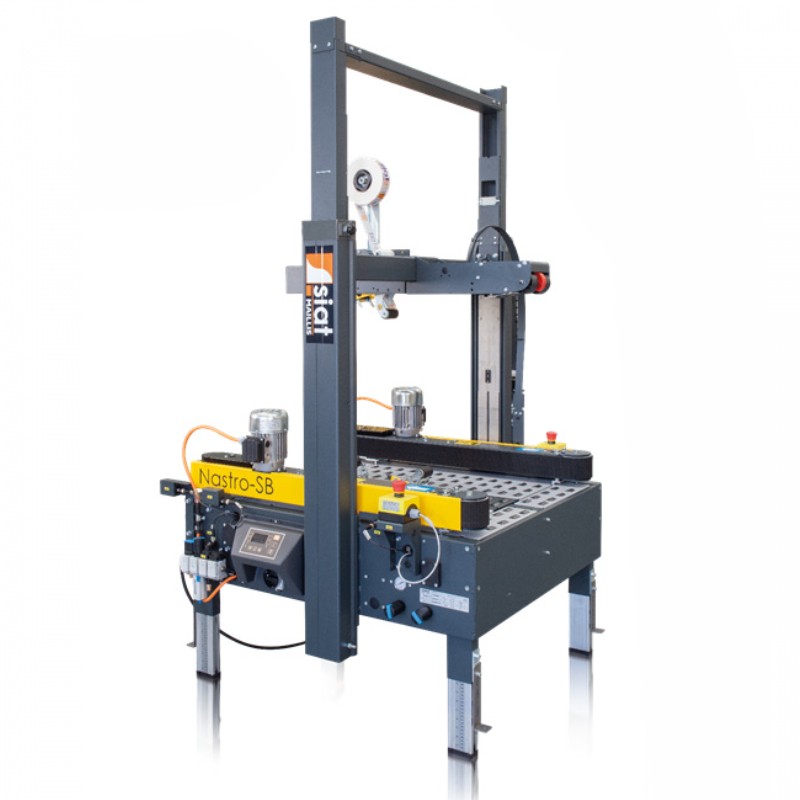

Nastro-SB R case sealer
Nastro-SB R model is an automatic “Random” case sealer: it means that the machine is able to adjust itself on the various box sizes.
Evoluted model of SM48 machine.
It allows a perfect closing of the box by adhesive tape thanks to the double top and bottom driven system and the super reliable taping unit K12R.
The utilization of Nastro-SB R is intuitive, simple and fast. On the Nastro-SB R version the rest position of the upper taping unit is DOWN in order to perform manually the feeding of boxes by an operator. On the Nastro-SB R version the rest position of the upper taping unit is UP in order to perform automatically the feeding of boxes thanks to some particular devices.
Key features
- Automatic adjustment on various box sizes
- Side lower drive belts
- Drive belts speed 20 m/min.
- 2 motors kW 0,13 each
- 2 x K12R taping unit - 75 mm width
- Extruded aluminium telescopic legs with millimetric guide
- Locked stop emergency button
- On/Off magneto-thermic switch
- Adjustable descending height stopper of the top taping unit to increase speed rate
- Top head pneumatic pressure regulators
- Safety protection doors connected to electro-pneumatic disconnection switches
- Adjustable working height 500 - 750 mm
Box dimensions
- Min. L 200 mm W 200 mm H 120 mm
- Max. L ∞ W 800 mm H 800 mm
Options
- Higher legs (AS80)
- Casters (AS77)
- Roller conveyor (RG)
- Extendable conveyor (GTL-GTR)
