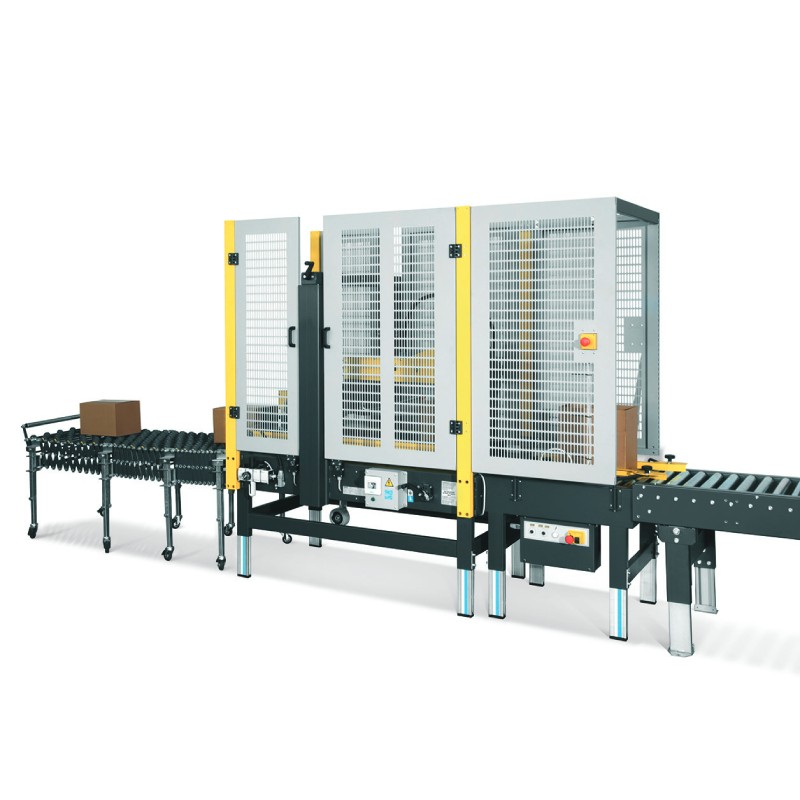

SM11 case sealer

Sealer SM11 Range is automatic Fixed Format case sealer. Adjustments needed to use the machine in a correct way are done manually. SIAT - multi packaging solutions.

The machine applies automatically two self-adhesive tape stripes on the upper and lower boxes middle line.

Request a quote

Quantity



100 % secure payment



Secure worldwide shipping (by UPS)



One-year warranty

SM11 carton sealer features

  • Side drag
  • Height adjustment: Spindle
  • Regulation width: Spindle
  • Higher side pressure box, manual adjustment by rollers
  • Sealing angles: 70 and 50mm. Adjustable
  • Sealed Unit: K11 50mm. OPTIONAL: K12 75mm.
  • Safety and security screens
  • Installed power: 2 motors from 0.18 HP
  • Baked epoxy
  • Standard connection 380 volt. 3 Phases + Neutral + Ground Wire
  • Use and maintenance manual with spare parts list and certificate of CE
Box Size
Modelo SM11 SM11/4S
DimensionesMinimoMaximoMinimoMaximo
l=length 200 600 200 600
a=width 120 500 105 500
h=height 120 600 60 560
